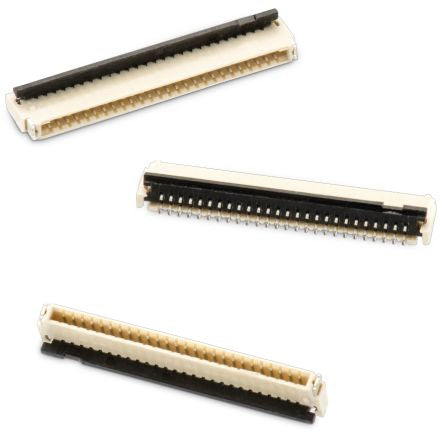

Wurth Elektronik WR-FPC 687 Series 0.5mm Pitch 12 Way Horizontal SMT Male FPC Connector, ZIF Top and Bottom Contact [687112182122]; 162-2303
0₫
Mã kho: 1622303
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 12 |
| Contact Material | Phosphor Bronze |
| Pitch | 0.5mm |
| Mounting Type | Surface Mount |
| Gender | Male |
| Termination Type | ZIF Top and Bottom contact |
| Insertion Force | ZIF |
| Body Orientation | Horizontal |
| Locking Mechanism | Yes |
| Current Rating | 500mA |
| Voltage Rating | 250 V ac |
| Series | WR-FPC |
| Series Number | 687 |
| Number of Rows | 1 |
| Contact Plating | Tin over Nickel |
| Minimum Operating Temperature | -55°C |
| Housing Material | Liquid Crystal Polymer |
| Maximum Operating Temperature | +85°C |
| Termination Method | SMT |
