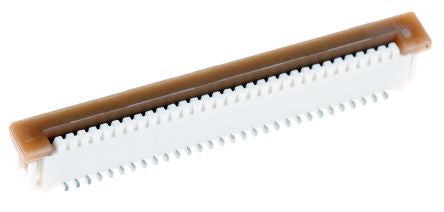

Molex Easy On 52610 Series 1mm Pitch 30 Way Straight Female FPC Connector, ZIF [526103033]; 167-6365
by Molex
0₫
Mã kho: 1676365
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Contacts | 30 |
Contact Material | Phosphor Bronze |
Pitch | 1mm |
Gender | Female |
Termination Type | ZIF |
Body Orientation | Straight |
Current Rating | 1A |
Voltage Rating | 125 V |
Series | Easy On |
Series Number | 52610 |
Number of Rows | 1 |
Contact Plating | Silver |
Maximum Operating Temperature | +85°C |
Termination Method | Solder |
Minimum Operating Temperature | -40°C |
