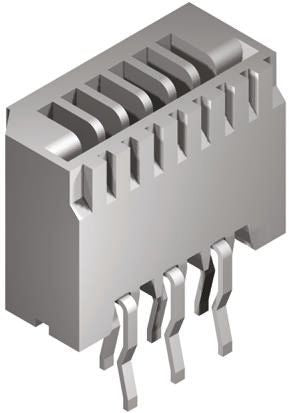

Molex Easy-On 52045 Series 1.25mm Pitch 14 Way Straight Female FPC Connector, Vertical Contact [52045-1445]; 161-9513
by Molex
0₫
Mã kho: 1619513
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 14 |
| Contact Material | Phosphor Bronze |
| Pitch | 1.25mm |
| Mounting Type | Through Hole |
| Gender | Female |
| Termination Type | Vertical Contact |
| Body Orientation | Straight |
| Current Rating | 1A |
| Voltage Rating | 200 V |
| Series | Easy-On |
| Series Number | 52045 |
| Number of Rows | 1 |
| Contact Plating | Tin |
| Minimum Operating Temperature | -40°C |
| Termination Method | Solder |
| Housing Material | PET |
| Maximum Operating Temperature | +85°C |
