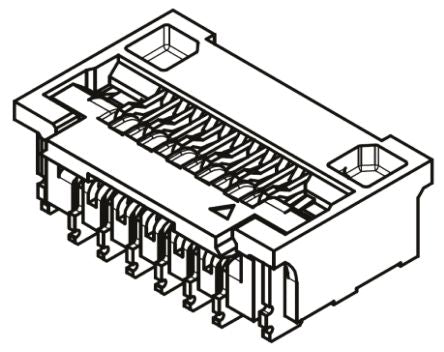

Molex Easy-On 502078 Series 0.25mm Pitch 25 Way Right Angle SMT Female FPC Connector, Bottom Contact [502078-2510]; 743-1262
by Molex
0₫
Mã kho: 7431262
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 25 |
| Contact Material | Copper Alloy |
| Pitch | 0.25mm |
| Mounting Type | Surface Mount |
| Gender | Female |
| Termination Type | Bottom Contact |
| Body Orientation | Right Angle |
| Locking Mechanism | Yes |
| Current Rating | 200mA |
| Voltage Rating | 50 V ac/dc |
| Series | Easy-On |
| Series Number | 502078 |
| Number of Rows | 1 |
| Contact Plating | Gold over Nickel |
| Termination Method | Solder |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | +85°C |
| Housing Material | Thermoplastic |
