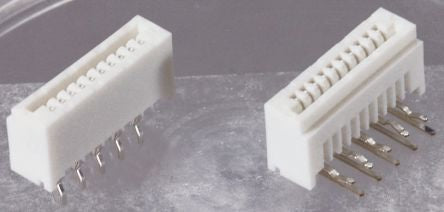

![JST 25FE-BT-VK-N 6386631](http://nguyenxuong.com/cdn/shop/products/RJ638642-02_a6f8c54e-f4d0-4583-9d3c-14ef5f1a054f_444x212.jpg?v=1594123949)
JST 1.25mm Pitch 25 Way Straight Female FPC Connector [25FE-BT-VK-N]; 638-6631
by JST
0₫
Mã kho: 6386631
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Number of Contacts | 25 |
Contact Material | Copper Alloy |
Pitch | 1.25mm |
Mounting Type | Through Hole |
Gender | Female |
Body Orientation | Straight |
Current Rating | 1A |
Voltage Rating | 200 V ac/dc |
Number of Rows | 2 |
Contact Plating | Lead, Tin |
Maximum Operating Temperature | +85°C |
Termination Method | Solder |
Housing Material | PBT |
Minimum Operating Temperature | -25°C |
