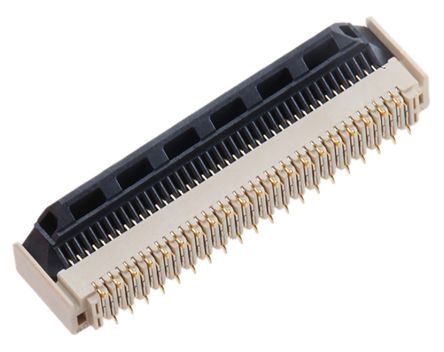

Hirose FH40 0.5mm Pitch 40 Way Straight SMT Female FPC Connector, ZIF Vertical Contact [FH40-40S-0.5SV]; 166-4911
by Hirose
0₫
Mã kho: 1664911
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 40 |
| Contact Material | Phosphor Bronze |
| Pitch | 0.5mm |
| Mounting Type | Surface Mount |
| Gender | Female |
| Termination Type | ZIF Vertical Contact |
| Body Orientation | Straight |
| Locking Mechanism | Yes |
| Current Rating | 500mA |
| Voltage Rating | 50 V ac |
| Series | FH40 |
| Number of Rows | 1 |
| Contact Plating | Gold |
| Housing Material | Liquid Crystal Polymer |
| Minimum Operating Temperature | -40°C |
| Termination Method | Solder |
| Maximum Operating Temperature | +105°C |
