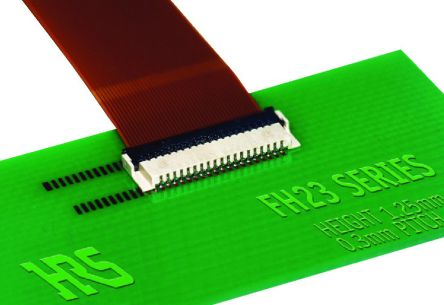

Hirose FH23 0.3mm Pitch 51 Way Straight SMT Female FPC Connector, LIF Bottom Contact [FH23-51S-0.3SHAW(05)]; 136-2294
by Hirose
0₫
Mã kho: 1362294
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 51 |
| Contact Material | Phosphor Bronze |
| Pitch | 0.3mm |
| Mounting Type | Surface Mount |
| Gender | Female |
| Termination Type | LIF Bottom Contact |
| Body Orientation | Straight |
| Locking Mechanism | Yes |
| Current Rating | 300mA |
| Voltage Rating | 30 V ac |
| Series | FH23 |
| Number of Rows | 2 |
| Contact Plating | Gold |
| Minimum Operating Temperature | -55°C |
| Termination Method | Solder |
| Housing Material | Liquid Crystal Polymer |
| Maximum Operating Temperature | +85°C |
