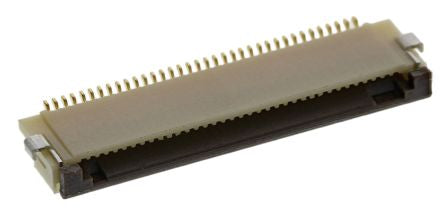

Hirose FH12 0.5mm Pitch 36 Way Right Angle SMT Female FPC Connector, ZIF Bottom Contact [FH12-36S-0.5SH(55)]; 166-4869
by Hirose
0₫
Mã kho: 1664869
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 36 |
| Contact Material | Phosphor Bronze |
| Pitch | 0.5mm |
| Mounting Type | Surface Mount |
| Gender | Female |
| Termination Type | ZIF Bottom Contact |
| Body Orientation | Right Angle |
| Current Rating | 500mA |
| Voltage Rating | 50 V ac |
| Series | FH12 |
| Number of Rows | 1 |
| Contact Plating | Gold |
| Housing Material | PPS·Polyamide |
| Termination Method | Solder |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | +85°C |
