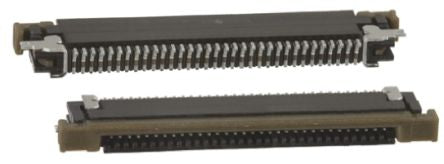

Amphenol FCI SFV-R 0.5mm Pitch 33 Way Right Angle SMT Male FPC Connector, ZIF Bottom Contact [SFV33R-1STE9HLF]; 771-0256
by Amphenol FCI
0₫
Mã kho: 7710256
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Contacts | 33 |
| Contact Material | Phosphor Bronze |
| Pitch | 0.5mm |
| Mounting Type | Surface Mount |
| Gender | Male |
| Termination Type | ZIF Bottom Contact |
| Body Orientation | Right Angle |
| Current Rating | 500mA |
| Voltage Rating | 50 V ac/dc |
| Series | SFV-R |
| Number of Rows | 1 |
| Contact Plating | Tin |
| Housing Material | Glass Reinforced Polyamide Resin |
| Minimum Operating Temperature | -55°C |
| Maximum Operating Temperature | +105°C |
| Termination Method | Solder |
