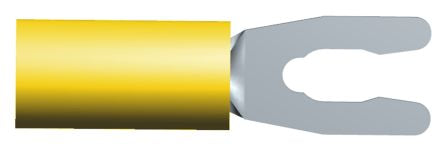

TE Connectivity 52430 Series Insulated Crimp Spade Connector, 3mm² to 6mm², 12AWG to 10AWG, M3.5 (#6) Stud Size Nylon, [52430-1]; 164-5883
0₫
Mã kho: 1645883
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | 52430 |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Width | 7.92mm |
| Minimum Wire Size mm² | 3mm² |
| Maximum Wire Size mm² | 6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Stud Size | M3.5 (#6) |
| Colour | Yellow |
| Contact Plating | Tin |
| Overall Length | 28.73mm |
| Contact Material | Phosphor Bronze |
| Thickness | 1.02mm |
