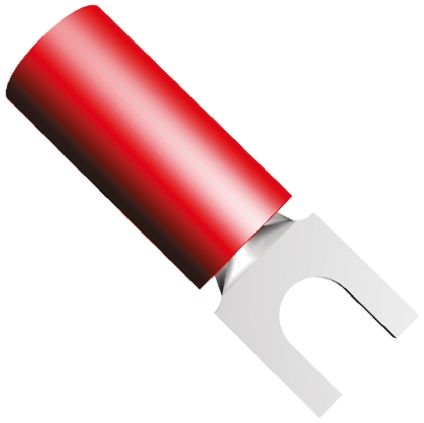

SPADE TERMINAL, 22-16AWG, PIDG, 4 [327717]; 190-3747
0₫
Mã kho: 1903747
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | PIDG |
| Insulation | Insulated |
| Width | 5.54mm |
| Insulation Material | Nylon |
| Minimum Wire Size mm² | 0.26mm² |
| Maximum Wire Size mm² | 1.65mm² |
| Minimum Wire Size AWG | 22AWG |
| Maximum Wire Size AWG | 16AWG |
| Shrouded/Unshrouded | Unshrouded |
| Stud Size | M2.5 |
| Colour | Red |
| Overall Length | 17.12mm |
| Contact Plating | Tin |
| Contact Material | Copper |
| Thickness | 0.84mm |
