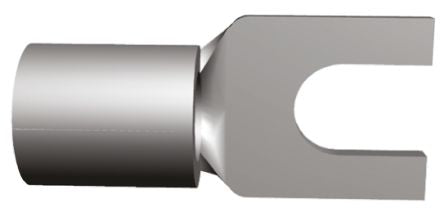

TE Connectivity Uninsulated Crimp Spade Connector, 2.6mm² to 6.6mm², 12AWG to 10AWG, M3.5 Stud Size [322451]; 710-5519
0₫
Mã kho: 7105519
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Insulation | Uninsulated |
| Width | 7.16mm |
| Minimum Wire Size mm² | 2.6mm² |
| Maximum Wire Size mm² | 6.6mm² |
| Minimum Wire Size AWG | 12AWG |
| Maximum Wire Size AWG | 10AWG |
| Stud Size | M3.5 |
| Contact Plating | Tin |
| Overall Length | 16.03mm |
| Contact Material | Copper |
