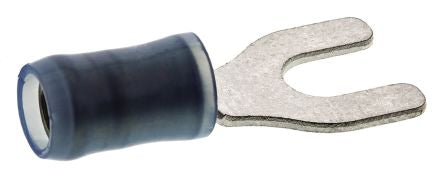

TE Connectivity PIDG Series Insulated Crimp Spade Connector, 1.25mm² to 2mm², 16AWG to 14AWG, M4 Stud Size Nylon, Blue [32056]; 457-5031
0₫
Mã kho: 4575031
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Series | PIDG |
| Insulation | Insulated |
| Insulation Material | Nylon |
| Width | 9.53mm |
| Minimum Wire Size mm² | 1.25mm² |
| Maximum Wire Size mm² | 2mm² |
| Minimum Wire Size AWG | 16AWG |
| Maximum Wire Size AWG | 14AWG |
| Stud Size | M4 |
| Colour | Blue |
| Contact Plating | Tin |
| Overall Length | 23.06mm |
| Contact Material | Copper |
