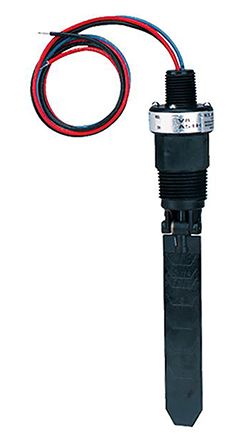

Flow Switch DWYER INSTRUMENTS V8 [V8]; 906-7746
0₫
Mã kho: 9067746
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Media Monitored | Gas, Liquid |
| Device Type | Vane Operated |
| Minimum Flow Rate | 10.8 (Liquid) gal/min, 39 (Gas) gal/min |
| Maximum Flow Rate | 45 (Liquid) gal/min, 168.6 (Gas) gal/min |
| Supply Voltage | 120/250 V ac |
| Pipe Diameter Range | 1 → 6 in |
| Connection Type | 1 NPT Male |
| Maximum Pressure | 10.34bar |
| Material | Polyphenylene |
| Maximum Operating Temperature | +100°C |
| Current Rating | 0.208333333333333 |
| Series | V8 |
