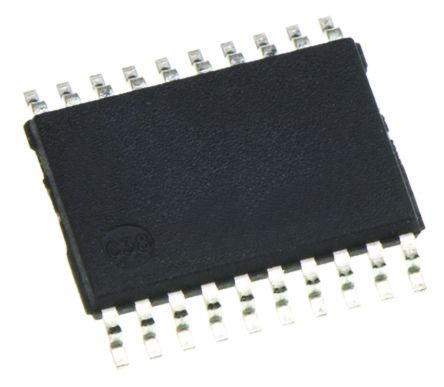

Toshiba 74VHC273FT Octal D Type Flip Flop IC, CMOS, 20-Pin TSSOP [74VHC273FT]; 171-3546
by Toshiba
0₫
Mã kho: 1713546
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | 74VHC |
| Logic Function | D Type |
| Input Type | CMOS, TTL |
| Output Type | CMOS |
| Output Signal Type | Single Ended |
| Triggering Type | Positive Edge |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 20 |
| Number of Elements per Chip | 8 |
| Maximum Propagation Delay Time @ Maximum CL | 21.5 ns @ 50 pF |
| Dimensions | 6.5 x 4.4 x 1mm |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 2 V |
| Width | 4.4mm |
| Height | 1mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Length | 6.5mm |
| Automotive Standard | AEC-Q100 |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +125 °C |
