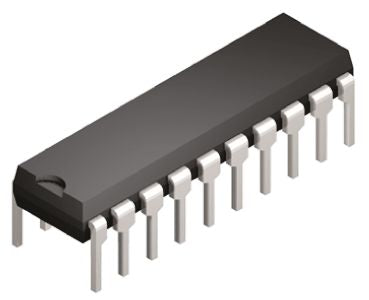

Texas Instruments SN74LS273N Octal D Type Flip Flop IC, 4.75 → 5.25 V, 20-Pin PDIP [SN74LS273N]; 368-6297
0₫
Mã kho: 3686297
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Logic Family | LS |
Logic Function | D Type |
Input Type | Single Ended |
Output Signal Type | Single Ended |
Triggering Type | Positive Edge |
Polarity | Non-Inverting |
Mounting Type | Through Hole |
Package Type | PDIP |
Pin Count | 20 |
Set/Reset | Master Reset |
Number of Elements per Chip | 8 |
Maximum Propagation Delay Time @ Maximum CL | 27 ns @ 5 V |
Dimensions | 24.33 x 6.35 x 4.57mm |
Length | 24.33mm |
Maximum Operating Temperature | +70 °C |
Height | 4.57mm |
Maximum Operating Supply Voltage | 5.25 V |
Width | 6.35mm |
Minimum Operating Supply Voltage | 4.75 V |
Propagation Delay Test Condition | 15pF |
Minimum Operating Temperature | 0 °C |
