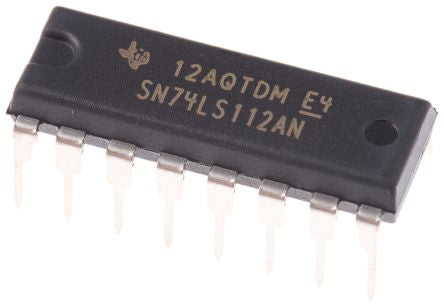

Texas Instruments SN74LS112AN Dual JK Type Flip Flop IC, 4.75 → 5.25 V, 16-Pin PDIP [SN74LS112AN]; 309-127
0₫
Mã kho: 309127
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Logic Family | LS |
Logic Function | JK Type |
Input Type | Single Ended |
Output Signal Type | Differential |
Triggering Type | Negative Edge |
Polarity | Inverting, Non-Inverting |
Mounting Type | Through Hole |
Package Type | PDIP |
Pin Count | 16 |
Set/Reset | Yes |
Number of Elements per Chip | 2 |
Maximum Propagation Delay Time @ Maximum CL | 20 ns @ 5 V |
Dimensions | 19.3 x 6.35 x 4.57mm |
Height | 4.57mm |
Maximum Operating Supply Voltage | 5.25 V |
Maximum Operating Temperature | +70 °C |
Length | 19.3mm |
Minimum Operating Temperature | 0 °C |
Propagation Delay Test Condition | 15pF |
Minimum Operating Supply Voltage | 4.75 V |
Width | 6.35mm |
