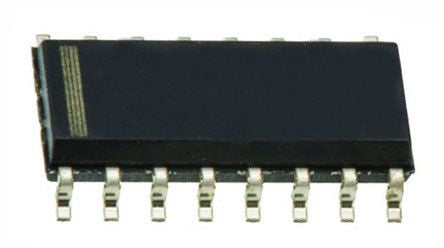

Texas Instruments SN74HC109DR Dual JK Type Flip Flop IC, 16-Pin SOIC [SN74HC109DR]; 145-1053
0₫
Mã kho: 1451053
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Logic Family | HC |
Logic Function | JK Type |
Input Type | Single Ended |
Output Signal Type | Differential |
Triggering Type | Positive Edge |
Polarity | Inverting, Non-Inverting |
Mounting Type | Surface Mount |
Package Type | SOIC |
Pin Count | 16 |
Set/Reset | Yes |
Number of Elements per Chip | 2 |
Maximum Propagation Delay Time @ Maximum CL | 175 ns @ 2 V |
Dimensions | 9.9 x 3.91 x 1.58mm |
Maximum Operating Temperature | 85 °C |
Height | 1.58mm |
Minimum Operating Temperature | -40 °C |
Minimum Operating Supply Voltage | 2 V |
Width | 3.91mm |
Maximum Operating Supply Voltage | 6 V |
Length | 9.9mm |
Propagation Delay Test Condition | 50pF |
