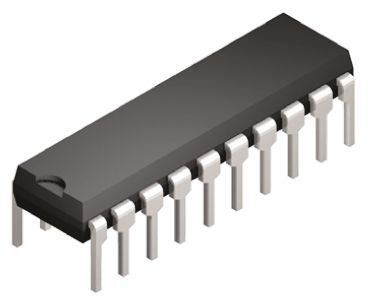

Texas Instruments SN74AHCT574N Octal D Type Flip Flop IC, 3-State, 4.5 → 5.5 V, 20-Pin PDIP [SN74AHCT574N]; 807-2612
0₫
Mã kho: 8072612
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | AHCT |
| Logic Function | D Type |
| Input Type | TTL |
| Output Type | 3 State |
| Output Signal Type | Single Ended |
| Triggering Type | Positive Edge |
| Polarity | Non-Inverting |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Pin Count | 20 |
| Number of Elements per Chip | 8 |
| Maximum Propagation Delay Time @ Maximum CL | 12 ns @ 50 pF |
| Dimensions | 26.92 x 6.6 x 4.57mm |
| Height | 4.57mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 4.5 V |
| Length | 26.92mm |
| Maximum Operating Supply Voltage | 5.5 V |
| Width | 6.6mm |
| Propagation Delay Test Condition | 50pF |
