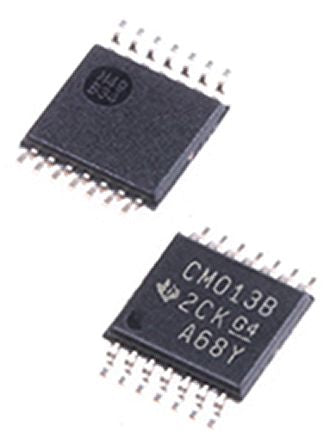

Texas Instruments CD4013BPWR Dual D Type Flip Flop IC, 3 → 18 V, 14-Pin TSSOP [CD4013BPWR]; 662-6829
0₫
Mã kho: 6626829
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Logic Family | 4000 |
Logic Function | D Type |
Input Type | Single Ended |
Output Signal Type | Differential |
Triggering Type | Positive Edge |
Polarity | Inverting, Non-Inverting |
Mounting Type | Surface Mount |
Package Type | TSSOP |
Pin Count | 14 |
Set/Reset | Yes |
Number of Elements per Chip | 2 |
Maximum Propagation Delay Time @ Maximum CL | 300 ns @ 5 V |
Dimensions | 5 x 4.4 x 1.15mm |
Length | 5mm |
Maximum Operating Temperature | +125 °C |
Height | 1.15mm |
Maximum Operating Supply Voltage | 18 V |
Width | 4.4mm |
Propagation Delay Test Condition | 50pF |
Minimum Operating Supply Voltage | 3 V |
Minimum Operating Temperature | -55 °C |
