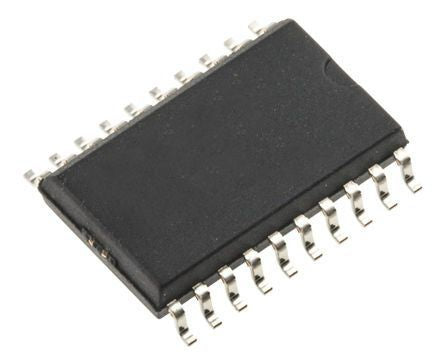

ON Semiconductor, MC74HCT273ADWG [MC74HCT273ADWG]; 186-9429
0₫
Mã kho: 1869429
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | HCT |
| Logic Function | D Type |
| Input Type | CMOS |
| Output Type | TTL |
| Polarity | Non-Inverting |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 20 |
| Number of Elements per Chip | 1 |
| Maximum Propagation Delay Time @ Maximum CL | 35 ns @ 50 pF |
| Dimensions | 12.95 x 7.6 x 2.4mm |
| Width | 7.6mm |
| Minimum Operating Supply Voltage | 4.5 V dc |
| Maximum Operating Supply Voltage | 5.5 V dc |
| Length | 12.95mm |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +125 °C |
| Height | 2.4mm |
| Minimum Operating Temperature | -55 °C |
