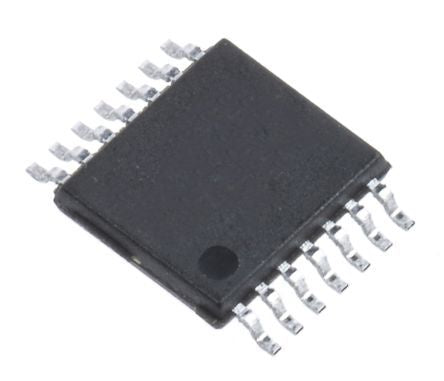

LOG CMOS D FLIP FLOP DUAL [MC74HC74ADTR2G]; 184-4800
0₫
Mã kho: 1844800
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | 74HC |
| Logic Function | D Flip-Flop |
| Input Type | Single Ended |
| Output Type | CMOS, LSTTL, NMOS, TTL |
| Output Signal Type | D Type Flip-Flop |
| Triggering Type | Positive Edge |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 14 |
| Set/Reset | Set/Reset |
| Number of Elements per Chip | 1 |
| Maximum Propagation Delay Time @ Maximum CL | 150ns |
| Dimensions | 5.1 x 4.5 x 1.2mm |
| Propagation Delay Test Condition | 50pF |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -55 °C |
| Width | 4.5mm |
| Height | 1.2mm |
| Minimum Operating Supply Voltage | 2 V |
| Automotive Standard | AEC-Q100 |
| Length | 5.1mm |
| Maximum Operating Supply Voltage | 6 V |
