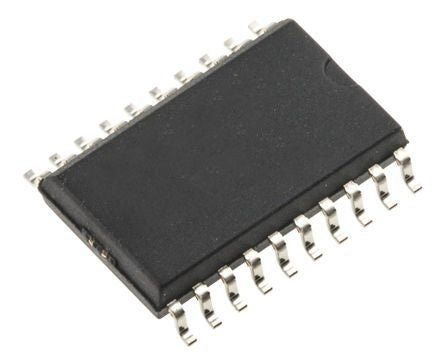

ON Semiconductor, MC74AC273DWG [MC74AC273DWG]; 186-8864
0₫
Mã kho: 1868864
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | AC |
| Logic Function | D Type |
| Input Type | TTL |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Pin Count | 20 |
| Set/Reset | Master Reset |
| Number of Elements per Chip | 1 |
| Maximum Propagation Delay Time @ Maximum CL | 14 ns @ 50 pF |
| Dimensions | 12.95 x 7.6 x 2.4mm |
| Maximum Operating Supply Voltage | 6 V |
| Width | 7.6mm |
| Height | 2.4mm |
| Maximum Operating Temperature | +85 °C |
| Length | 12.95mm |
| Propagation Delay Test Condition | 50pF |
| Minimum Operating Supply Voltage | 2 V |
| Minimum Operating Temperature | -40 °C |
