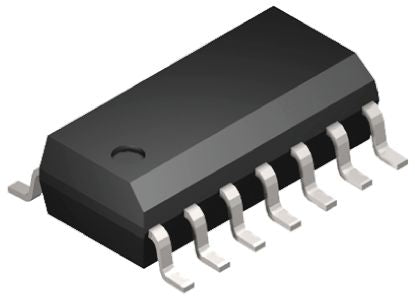

ON Semiconductor MC14013BDR2G Dual D Type Flip Flop IC, TTL, 3 → 18 V, 14-Pin SOIC [MC14013BDR2G]; 791-6081
0₫
Mã kho: 7916081
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Logic Family | 4000 |
Logic Function | D Type |
Input Type | CMOS |
Output Type | TTL |
Output Signal Type | Differential |
Triggering Type | Positive Edge |
Polarity | Inverting, Non-Inverting |
Mounting Type | Surface Mount |
Package Type | SOIC |
Pin Count | 14 |
Set/Reset | Yes |
Number of Elements per Chip | 2 |
Maximum Propagation Delay Time @ Maximum CL | 450 ns@ 50 pF |
Dimensions | 8.75 x 4 x 1.45mm |
Minimum Operating Supply Voltage | 3 V |
Width | 4mm |
Height | 1.45mm |
Maximum Operating Supply Voltage | 18 V |
Length | 8.75mm |
Maximum Operating Temperature | +125 °C |
Minimum Operating Temperature | -55 °C |
Propagation Delay Test Condition | 50pF |
