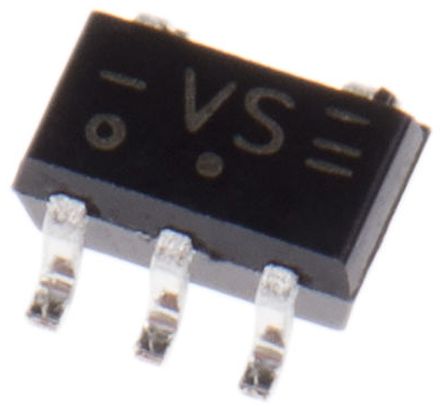

NXP 74LVC1G79GW,125 D Type Flip Flop IC, CMOS, 1.65 → 5.5 V, 5-Pin TSSOP [74LVC1G79GW,125]; 816-8785
by Nexperia
0₫
Mã kho: 8168785
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Logic Family | 74LVC |
| Logic Function | D Type |
| Input Type | TTL |
| Output Type | CMOS |
| Output Signal Type | Single Ended |
| Triggering Type | Positive Edge |
| Polarity | Inverting |
| Mounting Type | Surface Mount |
| Package Type | TSSOP |
| Pin Count | 5 |
| Number of Elements per Chip | 1 |
| Maximum Propagation Delay Time @ Maximum CL | 8 ns@ 50 pF |
| Dimensions | 2.25 x 1.35 x 1mm |
| Height | 1mm |
| Maximum Operating Temperature | +125 °C |
| Maximum Operating Supply Voltage | 5.5 V |
| Propagation Delay Test Condition | 50pF |
| Length | 2.25mm |
| Minimum Operating Temperature | -40 °C |
| Width | 1.35mm |
| Minimum Operating Supply Voltage | 1.65 V |
