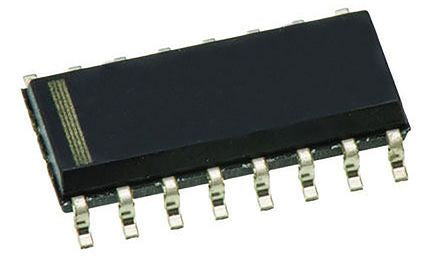

NXP 74HC109D,652 Dual JK Type Flip Flop IC, 2 → 6 V, 16-Pin SOIC [74HC109D,652]; 436-7385
by Nexperia
0₫
Mã kho: 4367385
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Logic Family | HC |
Logic Function | JK Type |
Input Type | Single Ended |
Output Signal Type | Differential |
Triggering Type | Positive Edge |
Polarity | Inverting, Non-Inverting |
Mounting Type | Surface Mount |
Package Type | SOIC |
Pin Count | 16 |
Set/Reset | Yes |
Number of Elements per Chip | 2 |
Maximum Propagation Delay Time @ Maximum CL | 175 ns@ 2 V |
Dimensions | 10 x 4 x 1.45mm |
Width | 4mm |
Minimum Operating Supply Voltage | 2 V |
Propagation Delay Test Condition | 50pF |
Length | 10mm |
Maximum Operating Supply Voltage | 6 V |
Minimum Operating Temperature | -40 °C |
Height | 1.45mm |
Maximum Operating Temperature | +125 °C |
