Panduit 500 kcmil - 750 kcmil Bronze Ground Clamp Connector, 5/8" Bolts, 2 Piece Clamp & 2 Bolts [GJ750-58-1]; PAL675

Name: Panduit 500 kcmil - 750 kcmil Bronze Ground Clamp Connector, 5/8" Bolts, 2 Piece Clamp & 2 Bolts [GJ750-58-1]; PAL675
Brand: Panduit
SKU: PAL675
Price: 16897500.0 VND
Availability: InStock

by Panduit

16.897.500₫

(Giá chưa VAT).

Mã kho: PAL675

Mã nhà sản xuất: GJ750-58-1

Đơn vị tính: PC

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Grounding Bonding / Grounding Mechanical Connectors / Flat Surface Grounding Clamps: Panduit GJ750-58-1

MÔ TẢ SẢN PHẨM

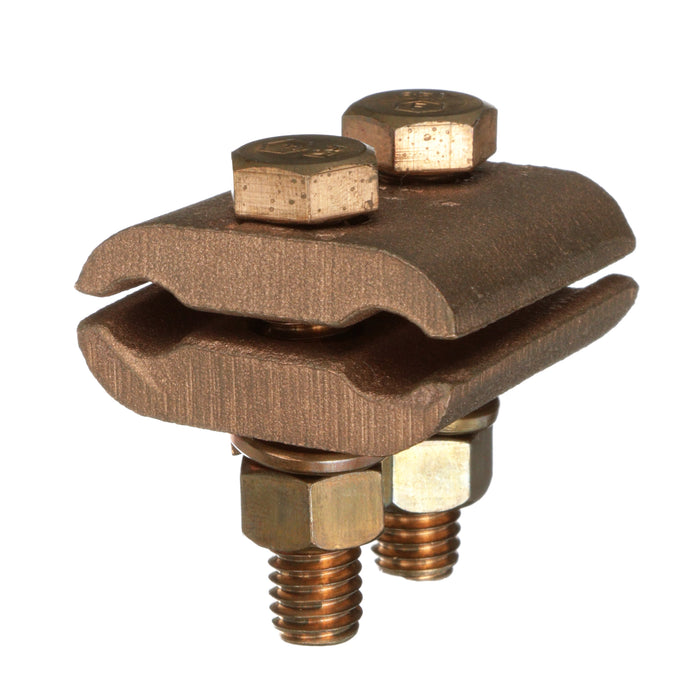

500 kcmil - 750 kcmil Bronze Ground Clamp Connector, 5/8" Bolts, 2 Piece Clamp & 2 Bolts

_THÔNG SỐ KỸ THUẬT:

Sub Brand	NA
Product Type	Grounding Clamp
Material	Copper Alloy
Maximum Compatible Conductor Size (AWG SOL)	NA
Maximum Compatible Conductor Size (AWG STR)	NA
Maximum Compatible Conductor Size (AWG)	NA
Maximum Compatible Conductor Size (kcmil)	750
Hex Size (In.)	NA
Minimum Compatible Conductor Size (AWG SOL)	NA
Minimum Compatible Conductor Size (AWG STR)	NA
Minimum Compatible Conductor Size (AWG)	NA
Minimum Compatible Conductor Size (kcmil)	500
Overall Length (In.)	3
Overall Length (mm)	76
Overall Width (In.)	3.25
Overall Width (mm)	83
Overall Height (In.)	3
Overall Height (mm)	76
Standards Met	cULus Listed to UL467/CSA 22.2 No.4 for Direct Burial Grounding
Application	Utility/Ground Grid
