Panduit 2-Piece, 2 Cable to Bar Clamp, #8 Sol. - #4 Str. [GH-1-Q]; PAL644

Name: Panduit 2-Piece, 2 Cable to Bar Clamp, #8 Sol. - #4 Str. [GH-1-Q]; PAL644
Brand: Panduit
SKU: PAL644
Price: 1371900.0 VND
Availability: InStock

by Panduit

1.371.900₫

(Giá chưa VAT).

Mã kho: PAL644

Mã nhà sản xuất: GH-1-Q

Đơn vị tính: PC

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Grounding Bonding / Grounding Mechanical Connectors / Flat Surface Grounding Clamps: Panduit GH-1-Q

MÔ TẢ SẢN PHẨM

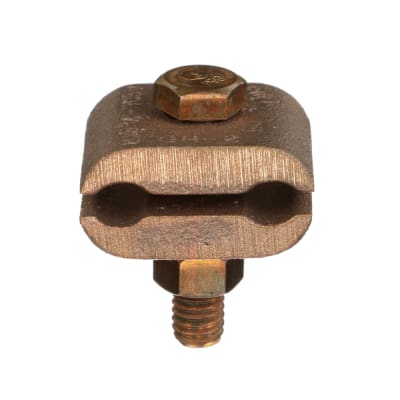

2-Piece, 2 Cable to Bar Clamp, #8 Sol. - #4 Str.

_THÔNG SỐ KỸ THUẬT:

Sub Brand	NA
Product Type	Grounding Clamp
Material	Copper Alloy
Maximum Compatible Conductor Size (AWG SOL)	NA
Maximum Compatible Conductor Size (AWG STR)	4
Maximum Compatible Conductor Size (AWG)	NA
Hex Size (In.)	9/16
Minimum Compatible Conductor Size (AWG SOL)	8
Minimum Compatible Conductor Size (AWG STR)	NA
Minimum Compatible Conductor Size (AWG)	NA
Overall Length (In.)	1.25
Overall Length (mm)	32
Overall Width (In.)	1.375
Overall Width (mm)	35
Overall Height (In.)	1.5
Overall Height (mm)	38
Standards Met	cULus Listed to UL467/CSA 22.2 No.4 for Direct Burial Grounding
Application	Utility/Ground Grid
