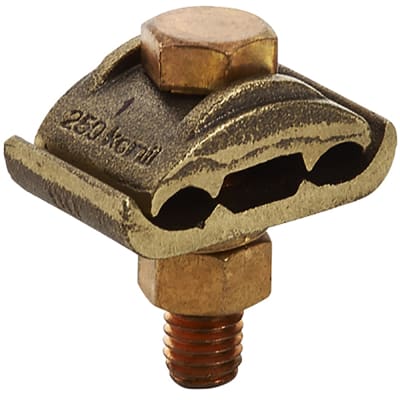

Panduit Mechanical Grounding Connector, 2 Cables to Bar, 4 Str. - 300 kcmil, 1/2" Stud [GBC4300-12-X]; PAL588

Name: Panduit Mechanical Grounding Connector, 2 Cables to Bar, 4 Str. - 300 kcmil, 1/2" Stud [GBC4300-12-X]; PAL588
Brand: Panduit
SKU: PAL588
Price: 1283500.0 VND
Availability: InStock

by Panduit

1.283.500₫

(Giá chưa VAT).

Mã kho: PAL588

Mã nhà sản xuất: GBC4300-12-X

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Grounding Bonding / Grounding Mechanical Connectors / Flat Surface Grounding Clamps: Panduit GBC4300-12-X

MÔ TẢ SẢN PHẨM

Mechanical Grounding Connector, 2 Cables to Bar, 4 Str. - 300 kcmil, 1/2" Stud

_THÔNG SỐ KỸ THUẬT:

Sub Brand	NA
Product Type	Grounding Clamp
Material	Copper Alloy
Maximum Compatible Conductor Size (AWG SOL)	NA
Maximum Compatible Conductor Size (AWG STR)	NA
Maximum Compatible Conductor Size (AWG)	NA
Maximum Compatible Conductor Size (kcmil)	300
Hex Size (In.)	3/4
Minimum Compatible Conductor Size (AWG SOL)	NA
Minimum Compatible Conductor Size (AWG STR)	4
Minimum Compatible Conductor Size (AWG)	NA
Overall Length (In.)	2.16
Overall Length (mm)	55
Overall Width (In.)	1.38
Overall Width (mm)	35
Overall Height (In.)	2.82
Overall Height (mm)	72
Standards Met	cULus Listed to UL467/CSA 22.2 No.4 for Direct Burial Grounding
Application	Utility/Ground Grid
