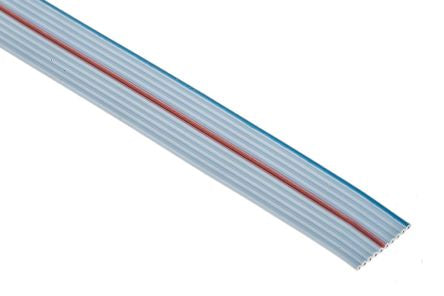

TE Connectivity 10 Way Unscreened Flat Ribbon Cable, 12.7 mm Width, 30m [2-1437356-9]; 363-626
0₫
Mã kho: 363626
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Number of Ways | 10 |
| Pitch | 1.27mm |
| American Wire Gauge | 28 |
| Reel Length | 30m |
| Width | 12.7 mm |
| Cable Shape | Ribbon |
| Sheath Colour | Blue |
| Voltage Rating | 300 V |
| Screened/Unscreened | Unscreened |
| Conductor Strand Type | Stranded |
| Number of Strands | 7 |
| Minimum Operating Temperature | -10°C |
| Maximum Operating Temperature | +105°C |
| Size of Strands | 36 AWG |
| Core Strands | 13332 |
| Capacitance | 45.92 pF/m |
| Characteristic Impedance | 100 Ω |
