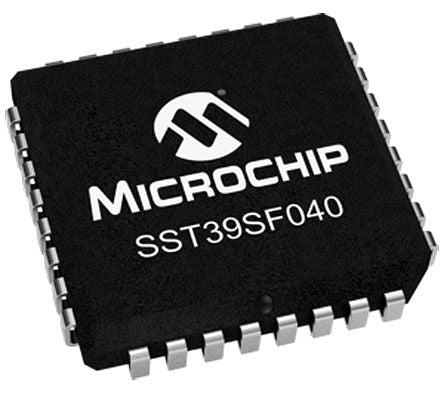

Microchip SST39SF040-55-4I-NHE, Parallel 4Mbit Flash Memory Chip, 55ns, 32-Pin PLCC [SST39SF040-55-4I-NHE]; 165-4121
by Microchip
0₫
Mã kho: 1654121
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Memory Size | 4Mbit |
Interface Type | Parallel |
Package Type | PLCC |
Pin Count | 32 |
Organisation | 512K x 8 bit |
Mounting Type | Surface Mount |
Cell Type | Split Gate |
Minimum Operating Supply Voltage | 4.5 V |
Maximum Operating Supply Voltage | 5.5 V |
Length | 11.43mm |
Height | 2.79mm |
Width | 13.97mm |
Dimensions | 11.43 x 13.97 x 2.79mm |
Number of Words | 512K |
Minimum Operating Temperature | -40 °C |
Maximum Random Access Time | 55ns |
Number of Bits per Word | 8bit |
Maximum Operating Temperature | +85 °C |
