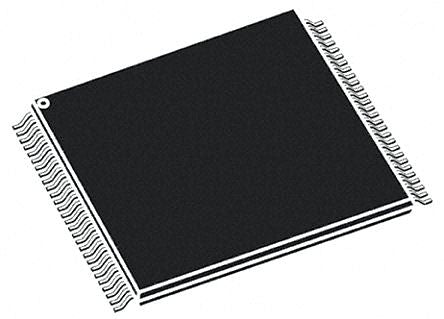

Cypress Semiconductor S29GL256S90TFI010, CFI 256Mbit Flash Memory, 90ns, 56-Pin TSOP [S29GL256S90TFI010]; 177-5277
0₫
Mã kho: 1775277
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Memory Size | 256Mbit |
Interface Type | CFI |
Package Type | TSOP |
Pin Count | 56 |
Organisation | 8M x 32 bit, 16M x 16 bit, 32M x 8 bit |
Mounting Type | Surface Mount |
Minimum Operating Supply Voltage | 2.7 V |
Maximum Operating Supply Voltage | 3.6 V |
Length | 18.5mm |
Height | 1.05mm |
Width | 14.1mm |
Dimensions | 18.5 x 14.1 x 1.05mm |
Minimum Operating Temperature | -40 °C |
Number of Words | 8M, 16M, 32M |
Maximum Random Access Time | 90ns |
Number of Bits per Word | 8, 16, 32 |
Maximum Operating Temperature | +85 °C |
