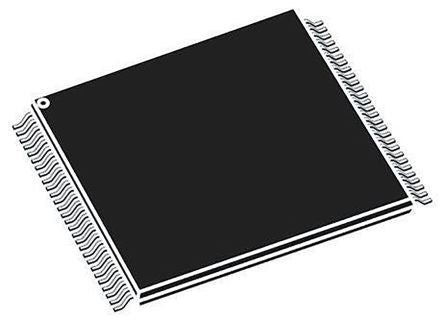

Cypress Semiconductor S29GL128S90TFI010, CFI, Parallel NOR 128Mbit Flash Memory, 90ns, 56-Pin TSOP [S29GL128S90TFI010]; 171-1483
0₫
Mã kho: 1711483
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Memory Size | 128Mbit |
Interface Type | CFI, Parallel |
Package Type | TSOP |
Pin Count | 56 |
Organisation | 8M x 16 bit |
Mounting Type | Surface Mount |
Cell Type | NOR |
Minimum Operating Supply Voltage | 2.7 V |
Maximum Operating Supply Voltage | 3.6 V |
Length | 18.5mm |
Height | 1.05mm |
Width | 14.1mm |
Dimensions | 18.5 x 14.1 x 1.05mm |
Number of Bits per Word | 16bit |
Minimum Operating Temperature | -40 °C |
Maximum Random Access Time | 90ns |
Maximum Operating Temperature | +85 °C |
Number of Words | 8M |
