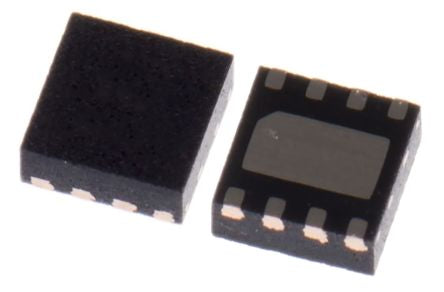

Cypress Semiconductor S25FL256SAGNFV001 NOR 256Mbit Flash Memory Chip, 8-Pin WSON [S25FL256SAGNFV001]; 182-3307
0₫
Mã kho: 1823307
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Memory Size | 256Mbit |
Interface Type | CFI, SPI |
Package Type | WSON |
Pin Count | 8 |
Organisation | 32M x 8 bit |
Mounting Type | Surface Mount |
Cell Type | NOR |
Minimum Operating Supply Voltage | 2.7 V |
Maximum Operating Supply Voltage | 3.6 V |
Length | 8mm |
Height | 0.75mm |
Width | 6mm |
Dimensions | 8 x 6 x 0.75mm |
Minimum Operating Temperature | -40 °C |
Number of Words | 32M |
Number of Banks | 2 |
Maximum Operating Temperature | +105 °C |
Number of Bits per Word | 8bit |
