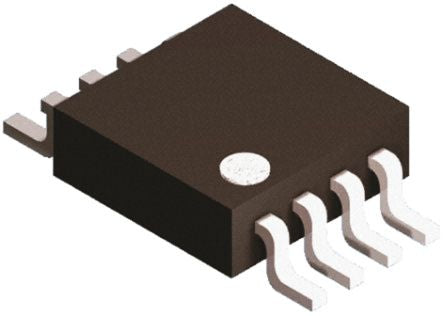

AMIC Technology A25L020CO-F, SPI 2Mbit Flash Memory Chip, 5ns; 3V, 8-Pin SOP [A25L020CO-F]; 802-2695
0₫
Mã kho: 8022695
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Memory Size | 2Mbit |
Interface Type | SPI |
Package Type | SOP |
Pin Count | 8 |
Organisation | 256K x 8 bit |
Mounting Type | Surface Mount |
Minimum Operating Supply Voltage | 2.7 V |
Maximum Operating Supply Voltage | 3.6 V |
Length | 5.33mm |
Height | 1.91mm |
Width | 5.38mm |
Dimensions | 5.33 x 5.38 x 1.91mm |
Maximum Random Access Time | 5ns |
Maximum Operating Temperature | +85 °C |
Number of Bits per Word | 8bit |
Number of Words | 256K |
Minimum Operating Temperature | -40 °C |
