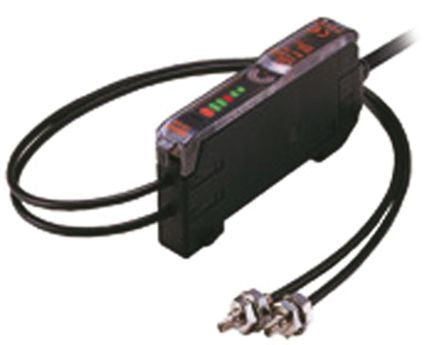

Omron Fibre Optic Sensor, NPN Output, 840 mW, IP50, 12 → 24 V dc [E3X-NA11V 2M]; 821-0022
by Omron
0₫
Mã kho: 8210022
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Type | NPN |
| Terminal Type | Wire Lead |
| Response Time | 200 μs |
| Light Source | Red LED |
| Electrical Connection | Pre-Wired Cable |
| Power Consumption | 840 mW |
| Switching Frequency | 60 Hz |
| IP Rating | IP50 |
| Housing Material | PBT |
| Supply Voltage | 12 → 24 V dc |
| Length | 159.2mm |
| Width | 12mm |
| Maximum Operating Temperature | +45 (Groups of 12 → 16 Amplifiers) °C, +50 (Groups 4 → 11 Amplifiers) °C, +55 (Groups 1 → 3 Amplifiers) °C |
| Minimum Operating Temperature | -25°C |
| Dimensions | 159.2 x 12 x 33 mm |
| Depth | 33mm |
