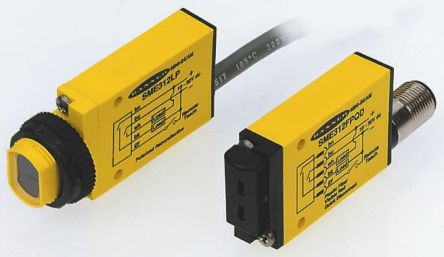

Banner Plastic Fibre Optic Sensor, NPN, PNP Output, IP67, 10 → 30 V dc [SME312FP]; 362-3943
by Banner
0₫
Mã kho: 3623943
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Type | NPN, PNP |
| Fibre Optic Type | Plastic |
| Terminal Type | Pre-Wired |
| Response Time | 500 μs |
| Light Source | Red LED |
| Electrical Connection | Cable |
| Switching Frequency | 1 kHz |
| IP Rating | IP67 |
| Supply Voltage | 10 → 30 V dc |
| Length | 30.7mm |
| Width | 12.2mm |
| Maximum Operating Temperature | +70°C |
| Depth | 66mm |
| Dimensions | 30.7 x 12.2 x 66 mm |
| Minimum Operating Temperature | -20°C |
