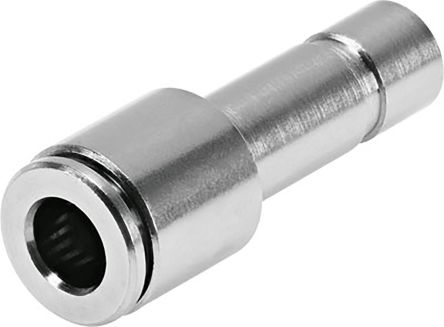

Festo Pneumatic Straight Tube-to-Tube Adapter, Push In 8 mm [NPQH-D-S8-Q6-P10]; 125-9566
by Festo
0₫
Mã kho: 1259566
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Manufacturer Series | NPQH |
| Tube Connection A | Push In 8 mm |
| Tube Connection B | Push In 6 mm |
| Body Material | Nickel Plated Brass |
| Finish | Nickel Plated |
| Maximum Operating Pressure | 20 bar |
| Minimum Operating Temperature | 0°C |
| Tube Connection B - Type | Push In |
| Food Grade | Yes |
| Chemical Resistant | Yes |
| Tube Connection A - Tube Size | 8mm |
| Tube Connection A - Type | Push In |
| Tube Connection B - Tube Size | 6mm |
| Maximum Operating Temperature | +150°C |
| Connector B | Push In 6 mm |
| Connection Style | Tube-to-Tube |
| Connector A | Push In 8 mm |
| Standards Met | ANSI/NSF 51, FDA 21 CFR 177.1595, FDA 21 CFR 177.2600, NSF H1 Reg. No. 128787 |
