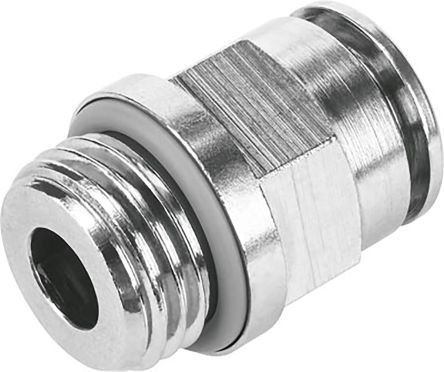

Festo Pneumatic Straight Threaded-to-Tube Adapter, G 1/4 Male to Push In 10 mm [NPQH-D-G14-Q10-P10]; 125-9602
by Festo
0₫
Mã kho: 1259602
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Connection Style | Threaded-to-Tube |
| Connector A | G 1/4 |
| Connector B | Push In 10 mm |
| Connector A - Gender | Male |
| Manufacturer Series | NPQH |
| Mounting Type | Inline |
| Body Material | Brass |
| Maximum Operating Pressure | 20 bar |
| Maximum Operating Temperature | +150°C |
| Minimum Operating Temperature | 0°C |
| Chemical Resistant | Yes |
| Food Grade | Yes |
| Standards Met | ANSI/NSF 51, FDA 21 CFR 177.1595, FDA 21 CFR 177.2600, NSF H1 Reg. No. 128787 |
