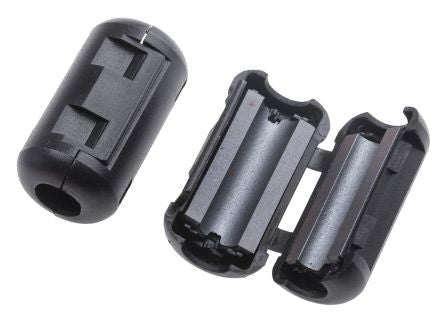

RS PRO Openable Ferrite Clamp, 22.5 Dia. x 43mm; 123-2491
by RS PRO
0₫
Mã kho: 1232491
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Type | Clamp Filter |
| Application | Computer Peripherals, Digital TV, Internal & External Power Cables, Monitors, Printers |
| Material | Ferrite |
| Impedance at 25 MHz | 105 |
| Openable | Yes |
| Outer Dimensions | 22.5 Dia. x 43mm |
| Impedance at 100 MHz | 190Ω |
| Aperture Diameter | 9.5mm |
| Number of Apertures | 1 |
| Outer Depth | 43mm |
| Outer Width | 22.5 Dia.mm |
