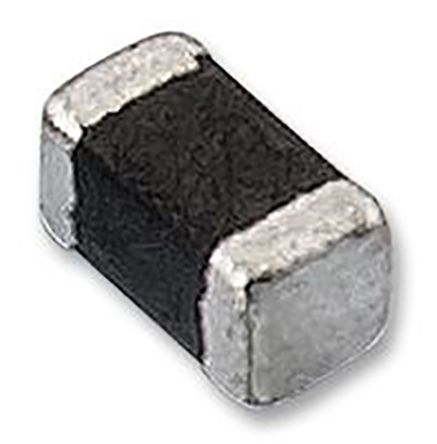

Wurth Elektronik Ferrite Bead, 1 x 0.5 x 0.5mm (0402), 30Ω impedance at 100 MHz [74279274]; 144-9745
0₫
Mã kho: 1449745
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Package Type | 402 |
Impedance at 100 MHz | 30Ω |
Impedance at 500 MHz | 43Ω |
Current Rating | 300mA |
Type | Ferrite Bead |
Dimensions | 1 x 0.5 x 0.5mm |
Length | 1mm |
Depth | 0.5mm |
Height | 0.5mm |
Application | Data Line Filter, Uncoupling of Distribution Voltage |
Maximum DC Resistance | 250mΩ |
Series | WE-CBF |
Material | Ferrite |
