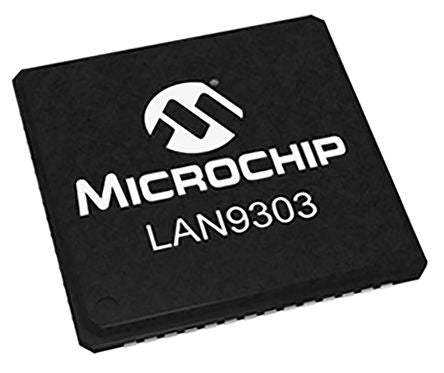

Microchip LAN9303I-ABZJ, 3-Port Ethernet Switch IC, MII/RMII/Turbo MII, 200MBps 3.3 V, 56-Pin QFN [LAN9303I-ABZJ]; 178-5248
by Microchip
0₫
Mã kho: 1785248
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| PHY/Transceiver Interface | MII/RMII/Turbo MII |
| Typical Data Rate | 200Mbps |
| Number of Ports | 3 |
| VLAN Support | Yes |
| Power Supply Type | Single |
| Typical Operating Supply Voltage | 3.3 V |
| Mounting Type | Surface Mount |
| Package Type | QFN |
| Pin Count | 56 |
| Dimensions | 7.95 x 7.95 x 0.9mm |
| Height | 0.9mm |
| Length | 7.95mm |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Width | 7.95mm |
