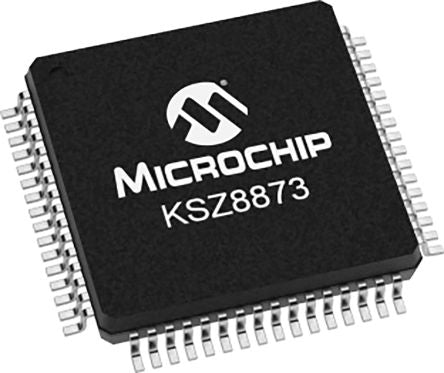

Microchip Technology KSZ8873RLLI, 3-Port Ethernet Switch IC, RMII, 10/100Mbit/s 3.3 V, 64-Pin LQFP [KSZ8873RLLI]; 177-3655
by Microchip
0₫
Mã kho: 1773655
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
PHY/Transceiver Interface | RMII |
Typical Data Rate | 10/100Mbit/s |
Number of Ports | 3 |
VLAN Support | Yes |
Integrated LED Drivers | Yes |
Power Supply Type | Single |
Typical Operating Supply Voltage | 3.3 V |
Mounting Type | Surface Mount |
Package Type | LQFP |
Pin Count | 64 |
Dimensions | 1.45 x 10 x 10mm |
Height | 1.45mm |
Length | 10mm |
Width | 10mm |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
