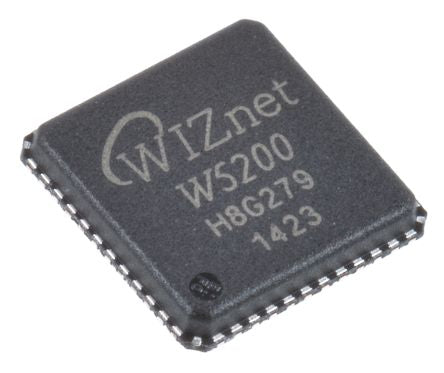

WIZnet Inc W5200, Ethernet Controller, 10 Mbps, 100 Mbps MDI/MDIX, SPI, 3.63 V dc, 48-Pin QFN [W5200]; 170-0900
by WIZnet Inc
0₫
Mã kho: 1700900
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Physical Network Type | 10BaseT, 100BaseTX |
Host Interface | SPI |
Network Interface | MDI/MDIX |
Communication Mode | Full Duplex, Half Duplex |
Data Rate | 10 Mbps, 100 Mbps |
Loopback Mode | Internal |
Mounting Type | Surface Mount |
Package Type | QFN |
Pin Count | 48 |
Auto-Negotiation | Yes |
Typical Operating Supply Voltage | 3.63 V dc |
Dimensions | 7 x 7 x 0.7mm |
Width | 7mm |
Length | 7mm |
Minimum Operating Temperature | -40 °C |
Maximum Operating Temperature | +85 °C |
Height | 0.7mm |
