![WIZnet Inc W5100 419930](http://nguyenxuong.com/cdn/shop/products/F0419930-01_444x360.jpg?v=1593965119)

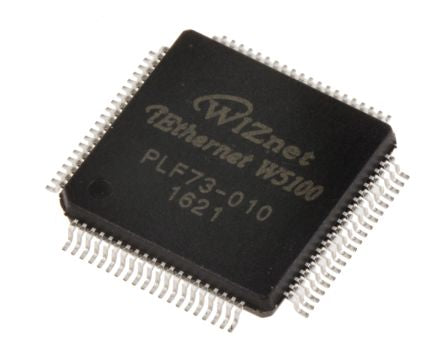

WIZnet Inc W5100, Ethernet Controller, 100MBps MII, SPI, 3.3 V, 80-Pin LQFP [W5100]; 419-930
by WIZnet Inc
0₫
Mã kho: 419930
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Physical Network Type | 10BaseT, 100BaseTX |
Host Interface | SPI |
Network Interface | MII |
Communication Mode | Full Duplex, Half Duplex |
Data Rate | 100Mbps |
Loopback Mode | Internal |
Standard Supported | IEEE 802.3u |
Mounting Type | Surface Mount |
Package Type | LQFP |
Pin Count | 80 |
Auto-Negotiation | Yes |
Typical Operating Supply Voltage | 3.3 V |
Dimensions | 10 x 10 x 1.45mm |
Maximum Operating Temperature | +85 °C |
Length | 10mm |
Minimum Operating Temperature | -40 °C |
Height | 1.45mm |
Width | 10mm |
