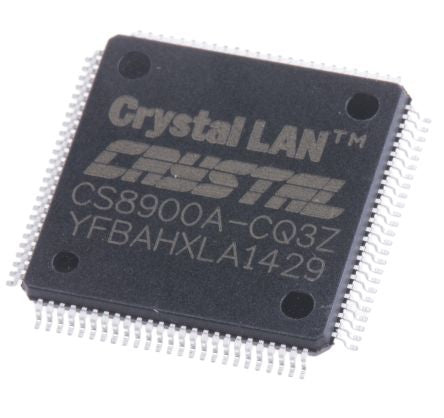

Cirrus Logic CS8900A-CQ3Z, Ethernet Controller, 10MBps AUI, ISA, 3.3 V, 100-Pin LQFP [CS8900A-CQ3Z]; 228-986
by Cirrus Logic
0₫
Mã kho: 228986
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Physical Network Type | 10Base2, 10Base5, 10BaseF, 10BaseT |
Host Interface | ISA |
Network Interface | AUI |
Communication Mode | Full Duplex, Half Duplex |
Data Rate | 10Mbps |
Loopback Mode | External, Internal |
Standard Supported | IEEE 802.3 |
Mounting Type | Surface Mount |
Package Type | LQFP |
Pin Count | 100 |
Auto-Negotiation | Yes |
DMA Support | Yes |
Typical Operating Supply Voltage | 3.3 V |
Dimensions | 14 x 14 x 1.4mm |
Height | 1.4mm |
Maximum Operating Temperature | +70 °C |
Length | 14mm |
Width | 14mm |
Minimum Operating Temperature | 0 °C |
