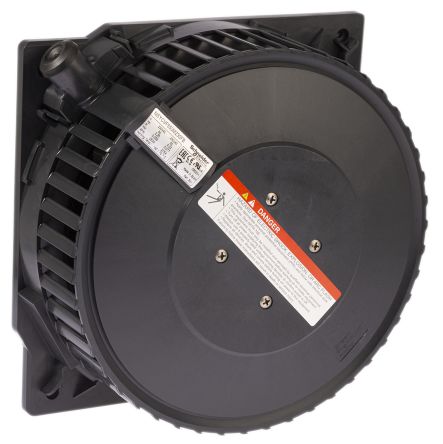

Schneider Electric Enclosure Fan Module, 550m³/h, 223mm, ClimaSys, 230 V ac [NSYCVF550M230FB]; 177-9013
0₫
Mã kho: 1779013
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Module Type | Screw Fixing Module |
| Dimensions | 223 x 223 x 90mm |
| Nominal Height | 223mm |
| Number of Fans | 1 |
| Air Flow | 550m³/h |
| Depth | 90mm |
| Width | 223mm |
| Supply Voltage | 230 V ac |
| Series | ClimaSys |
| Bearing Type | Ball |
| Special Features | Dark Grey RAL 7016, Free Flow Rate: 550 m3/h at 50 Hz, Outdoor Heavy Duty |
| Static Pressure | 350Pa |
| Maximum Current | 400mA |
