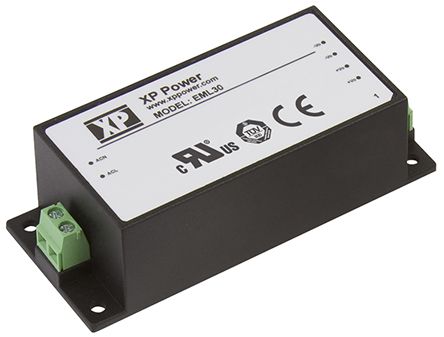

XP Power, 30W AC-DC Converter, 36V dc, Encapsulated, Medical Approved [EML30US36-S]; 122-6611
by XP Power
0₫
Mã kho: 1226611
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 36 V dc |
| Output Current | 830mA |
| Power Rating | 30W |
| Number of Outputs | 1 |
| Input Voltage | 85 → 264 V ac, 120 → 370 V dc |
| Mounting Type | Chassis Mount |
| Package Type | Encapsulated |
| Length | 96mm |
| Width | 40mm |
| Depth | 28.5mm |
| Weight | 170g |
| Maximum Temperature | +70°C |
| Medical Approved | Yes |
| Minimum Temperature | -20°C |
