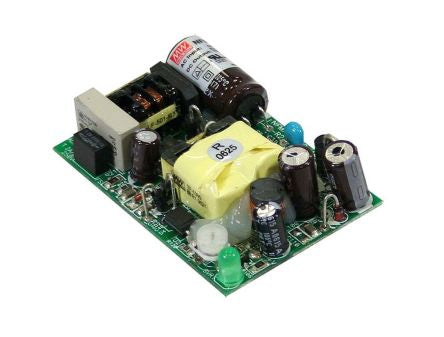

Mean Well, 10W Embedded Switch Mode Power Supply SMPS, 15V dc, Open Frame, Medical Approved [NFM-10-15]; 424-374
by Mean Well
0₫
Mã kho: 424374
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Voltage | 15 V dc |
| Output Current | 670mA |
| Power Rating | 10W |
| Number of Outputs | 1 |
| Input Voltage | 85 → 264 V ac, 120 → 370 V dc |
| Mounting Type | Chassis Mount |
| Package Type | Open Frame |
| Length | 65mm |
| Width | 45mm |
| Depth | 22mm |
| Weight | 45g |
| Maximum Temperature | +70°C |
| Medical Approved | Yes |
| Minimum Temperature | -20°C |
