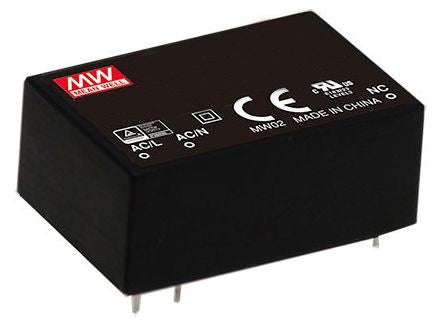

Mean Well, 3W Encapsulated Switch Mode Power Supply, 9V dc, Encapsulated [IRM-03-9]; 135-9235
by Mean Well
0₫
Mã kho: 1359235
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Output Voltage | 9 V dc |
Output Current | 333mA |
Power Rating | 3W |
Number of Outputs | 1 |
Input Voltage | 85 → 305 V ac, 120 → 430 V dc |
Mounting Type | PCB Mount |
Package Type | Encapsulated |
Length | 37mm |
Width | 24mm |
Depth | 15mm |
Weight | 20g |
Efficiency | 0.77 |
Maximum Temperature | +85°C |
Minimum Temperature | -30°C |
